Equipment / Skids

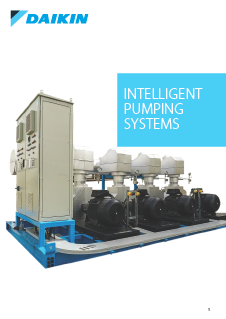

INTELLIGENT PUMPING SYSTEMS

Streamlined integration of components

Benefits

› Versatile designs

› High quality construction

› Simplified installation with less onsite labor

Optimized pump systems for chilled & condenser water loops

Directly Interface with the Chiller built-in plant manager. Single point responsibility for Chiller + Controls + Pumps Backed up by Daikin Warranty and Service Network.

BENEFITS

1. Single electrical connection

2. Simplified installation, startup and commisioning.

3. Compact footprint

4. Integrated control & Instrumentation

5. Fully adaptable to your application

STANDARD DESIGN INCLUDES:

• Base mounted, end suction pumps

• Daikin Intelligent Pump Manager Controller

• Suction Diffusers

• Triple duty valves

• Manual Gauges

• Pump common discharge header

• Pump common suction header

• Lifting lugs

TECHNICAL DATA

All Daikin skids are assembled on a steel base with or without enclosure. They arrive on site pre-wired, pre-piped and pre-commissioned, eliminating the scheduling challenges and cost overruns of a site-built system.

System Conditions	Range
System head (bars)	3 to 6
System flow rate (Ips)	up to 380
Number of pumps	2 to 5
Motor power (kW)	10 to 200

Optional Components

Vertical inline or split case pumps

Variable frequency drives (VFD)

Power distribution

Intelligent Pump Manager & instrumentation

Air separator

Pressurization Unit

Expansion tank

Suction diffusers

Check valves

Chemical pot feeder

Glycol feeder

Buffer tank

Plate Heat Exchanger

Inertia Base

Insulation

Cladding

Standard Pump Skid

Pump skid with / Optional components options

SKID DIMENSIONS

*Dimensions shown for standard skid systems

Header Size (mm)	L (m)	W (m)	H (m)
150	2.1	2.6	2.3
200	2.1	2.6	2.3
250	2.5	2.7	2.5
300	2.5	3.3	2.5

2-Pump Systems

Header Size (mm)	L (m)	W (m)	H (m)
200	3	2.6	2.3
250	3.5	2.6	2.3
300	3.7	2.7	2.5
350	3.7	2.7	2.5
400	3.7	3.3	2.5

3-Pump Systems

Header Size (mm)	L (m)	W (m)	H (m)
250	4	2.6	2.3
300	4.5	2.6	2.3
350	4.5	2.6	2.3
400	4.9	2.7	2.5
450	4.9	3.3	2.5

4-Pump Systems

Types

Energy transfer station skids

Air-cooled Chiller Skid

Pumping skids

Custom Process Cooling/Heating Skid

Learn More

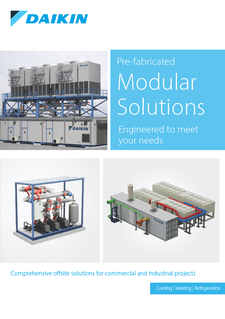

Pre Fabricated Modular Solution

Pre - fabricated modular solutions provide much needed flexibility for various construction projects of the public and private sector.

Read more
Containerized Solutions

Read more

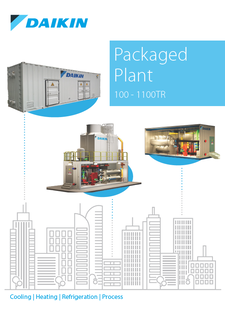

Modular Chiller Plant
